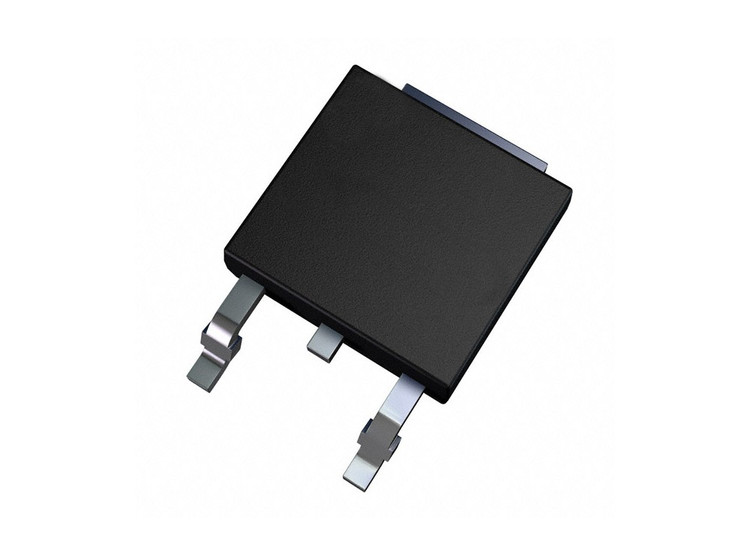

ماسفت P1703 نوع N-Channel پکیج TO-252 (DPAK)

 Type Designator: P1703BDG
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd - Maximum Power Dissipation: 50 W
   |Vds| - Maximum Drain-Source Voltage: 25 V
   |Vgs| - Maximum Gate-Source Voltage: 20 V
   |Vgs(th)| - Maximum Gate-Threshold Voltage: 2.3 V
   |Id|  - Maximum Drain Current: 42 A
   Tj  - Maximum Junction Temperature: 150 °C
   Qg  - Total Gate Charge: 20 nC
   tr  - Rise Time: 21.8 nS
   Coss - Output Capacitance: 208 pF
   Rds  - Maximum Drain-Source On-State Resistance: 0.016 Ohm
